Inserting Images

Overview

Images (and in some cases videos) are not added as attachments but are displayed inline in the text field, and are inserted at the point in the text where the cursor is located when the ‘Insert’ is performed. Images stored in the Gallery can be accessed via the Insert menu in the editor, you can browse a pop-up version of the Gallery to find the required file.

Images from your computer which are not already in the RSpace Gallery can be dragged and dropped directly into the editor field – a copy of the image is stored in the Gallery after this operation, and can then be used in other documents.

Inserting Images when Using a Mobile Device

If you're on a mobile device, you can easily add images directly to a document by clicking on the camera icon right above the text editor.

To place an image from the Gallery in your document:

  1. Place your cursor in an edit mode text field where you want the image to go.
  2. Click the Insert button at the top of the editor:
  1. and choose Insert from Gallery in the options drop-down.
  1. In the Gallery pop-up (which should be by default at the Image Gallery) browse to the image you wish to use and select its checkbox.
  1. Click on Insert on the bottom-right.

  1. The Gallery dialog closes and your image is place in the text field.

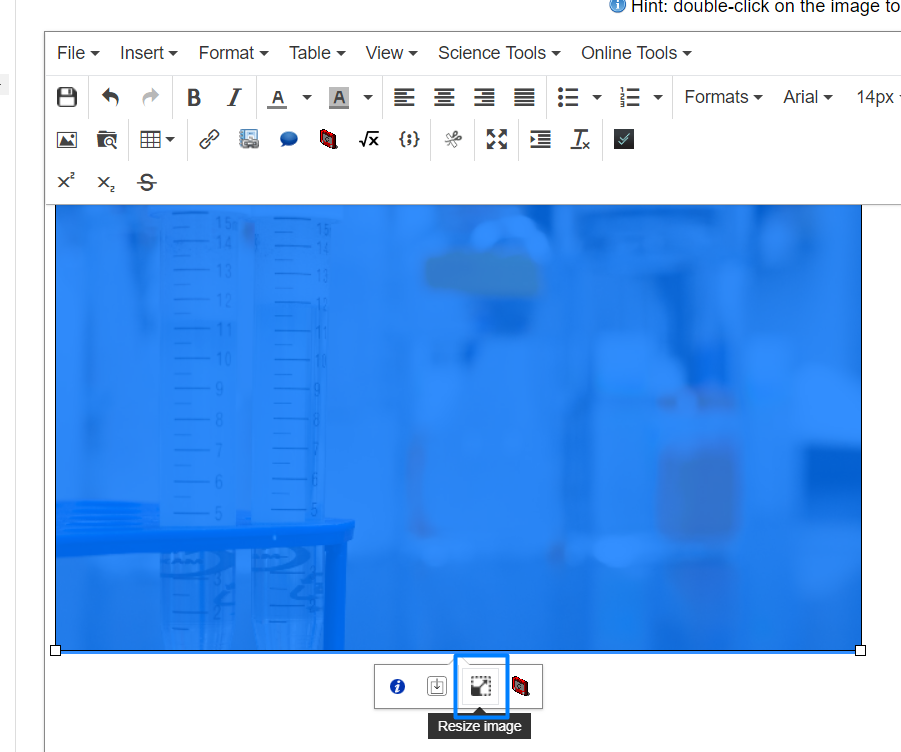

  1. In Edit Mode, you can resize or download the image, open a file info panel, and add annotations.
  1. In View Mode, you can download the image using the bottom-right icon when hovering over the image. The image also includes a caption with its name, and a file info button.

Images can be inserted directly into a document from a variety of sources, such as from your computer, from a remote URL, or from a file repository such as Dropbox (see Cloud Storage Integrations). Images inserted in this way will appear in the document as normal, but will also be placed into the Gallery in the background. The file will now be available for other documents.

Files can be placed in the document by drag and drop from another open window on the local computer, or by accessing the options in the ‘Insert’ menu of the Text Editor.

Note that you first have enable an integration (such as Dropbox) before it appears as an option. Read our Apps Introduction page to learn more.
